Tunable Laser Accessories

The Pure Photonics tunable laser product is often sold as a stand-alone solution, with all components for proper integration included. However, sometimes some customization is required and here we offer some helpful tools to make that easier.

These components can be ordered on our website. Use the 'Buy now' button to go to your shopping cart and to check-out. If you want to add multiple items, please use teh 'Add to Cart' button.

Oure shopping cart and payment terminal is managed by Paypal, providing you a secure and convenient shopping experience. Note that Paypal will ask you to log into a Paypal account, but also offers the option to directly pay by credit-card.

If you are looking for larger quantities or have suggestions on other items to add here, please contact us at sales@pure-photonics.com

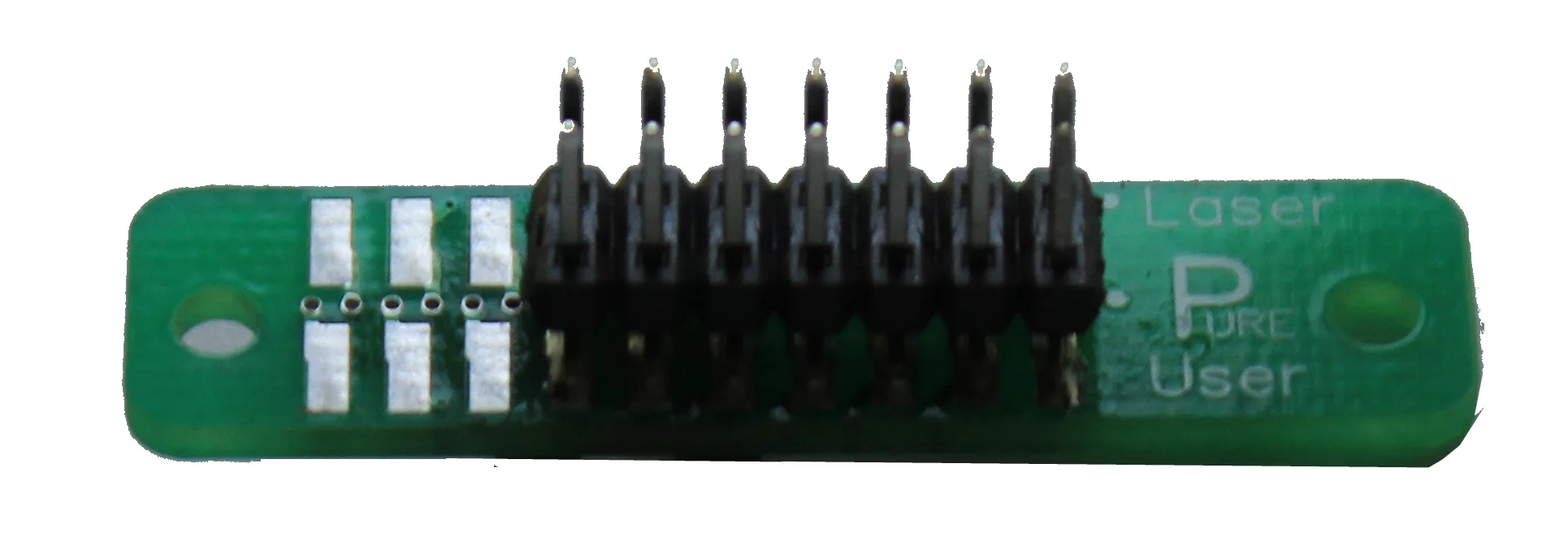

14 pin Conversion to IDC PPEB210-14

Conversion board from PPCL200 14 pin connector (female on PPCL200) to 14 pin male IDC connector

Product comes with installation material for PPCL200 (14mm long screws and 2 stand-offs)

Price: $35

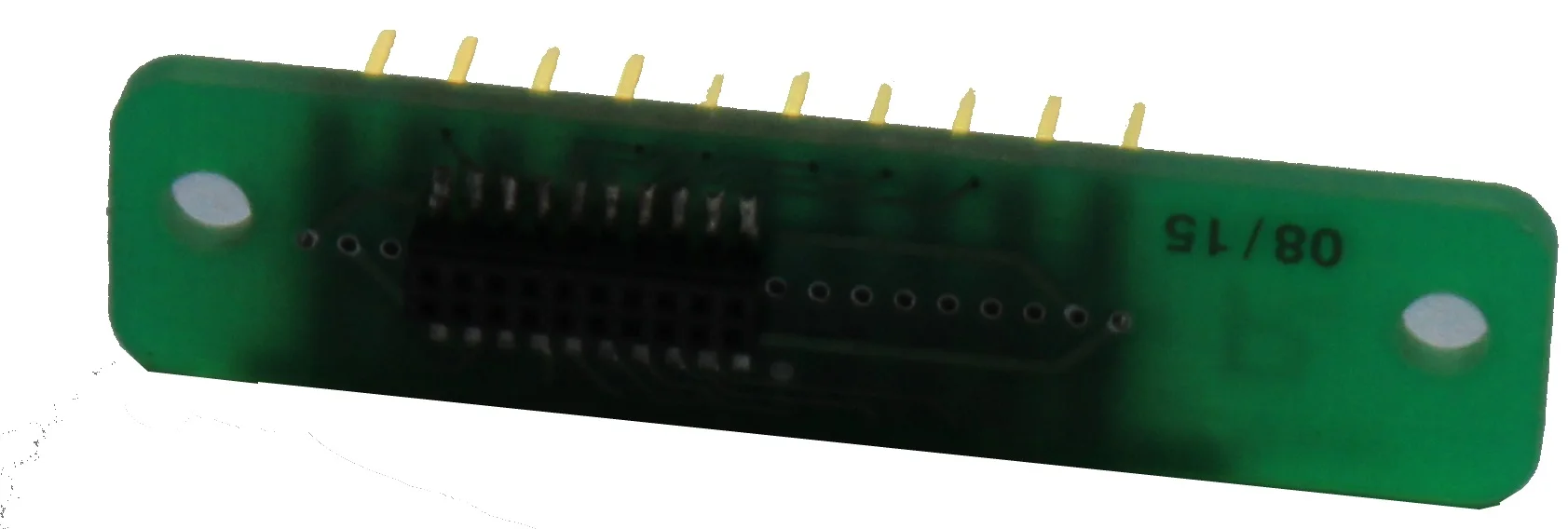

20 pin Conversion to IDC PPEB310-20

Conversion board from PPCL300 20 pin connector (male on PPCL300) to 20 pin male IDC connector

Product comes with installation material for PPCL300 (20mm long screws and 2 stand-offs)

Price: $35

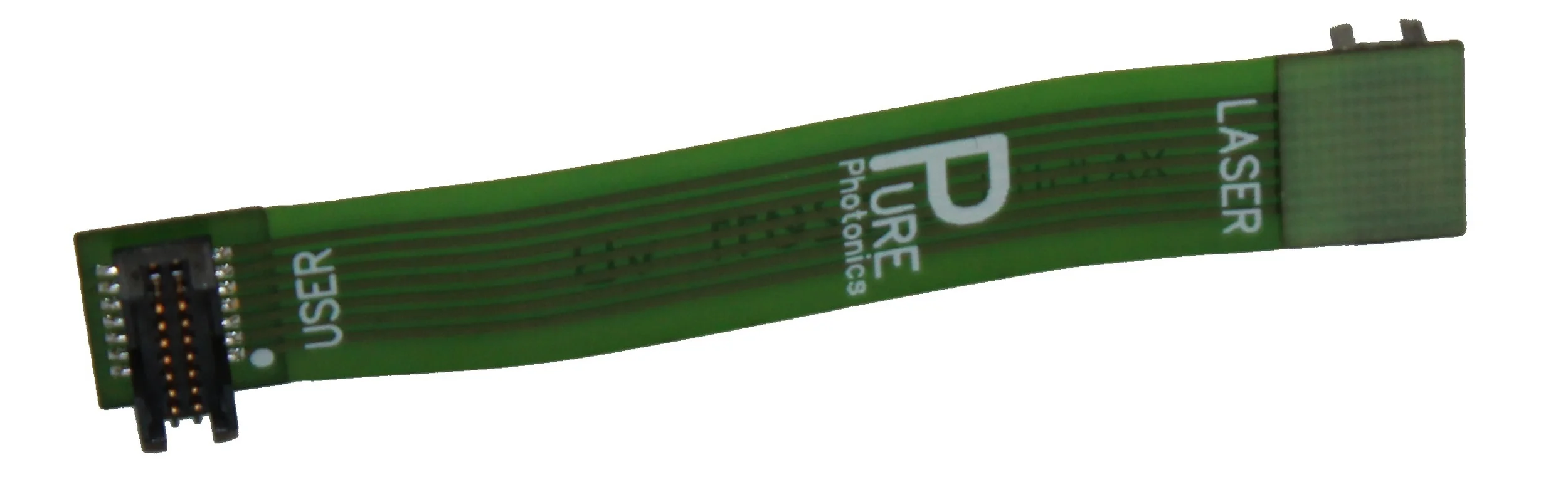

Long Flex-cable PPEB220-14

64mm x 10.5mm long flex cable with 14 pin connector on both sides. Several connector options available.

Price: $30

Connector options
Connector options

Short Flex-cable PPEB230-14

26mm x 7.0mm long flex cable with 14 pin connector on both sides. Several connector options available.

Price: $30

Connector options
Connector options

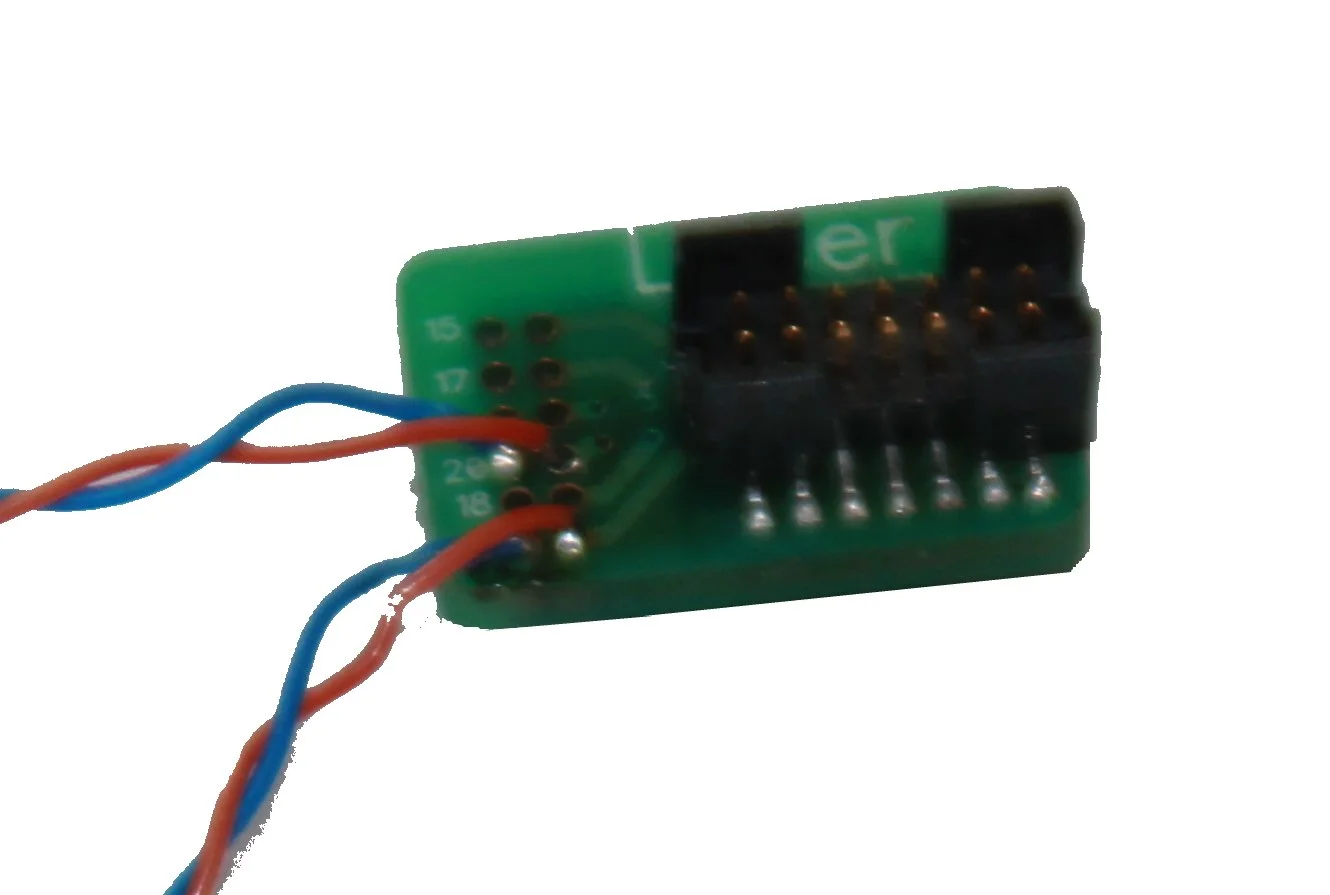

PPCL300 conversion to 14-pin PPEB320-14

Conversion board from PPCL300 20 pin connector (male on PPCL300) to 14 pin Samtec connector. Product comes optionally with cables to the desired pins and BNC connectors

Price: $30 + $5 per BNC connector

Wiring
Top connector
Wiring
Top connector

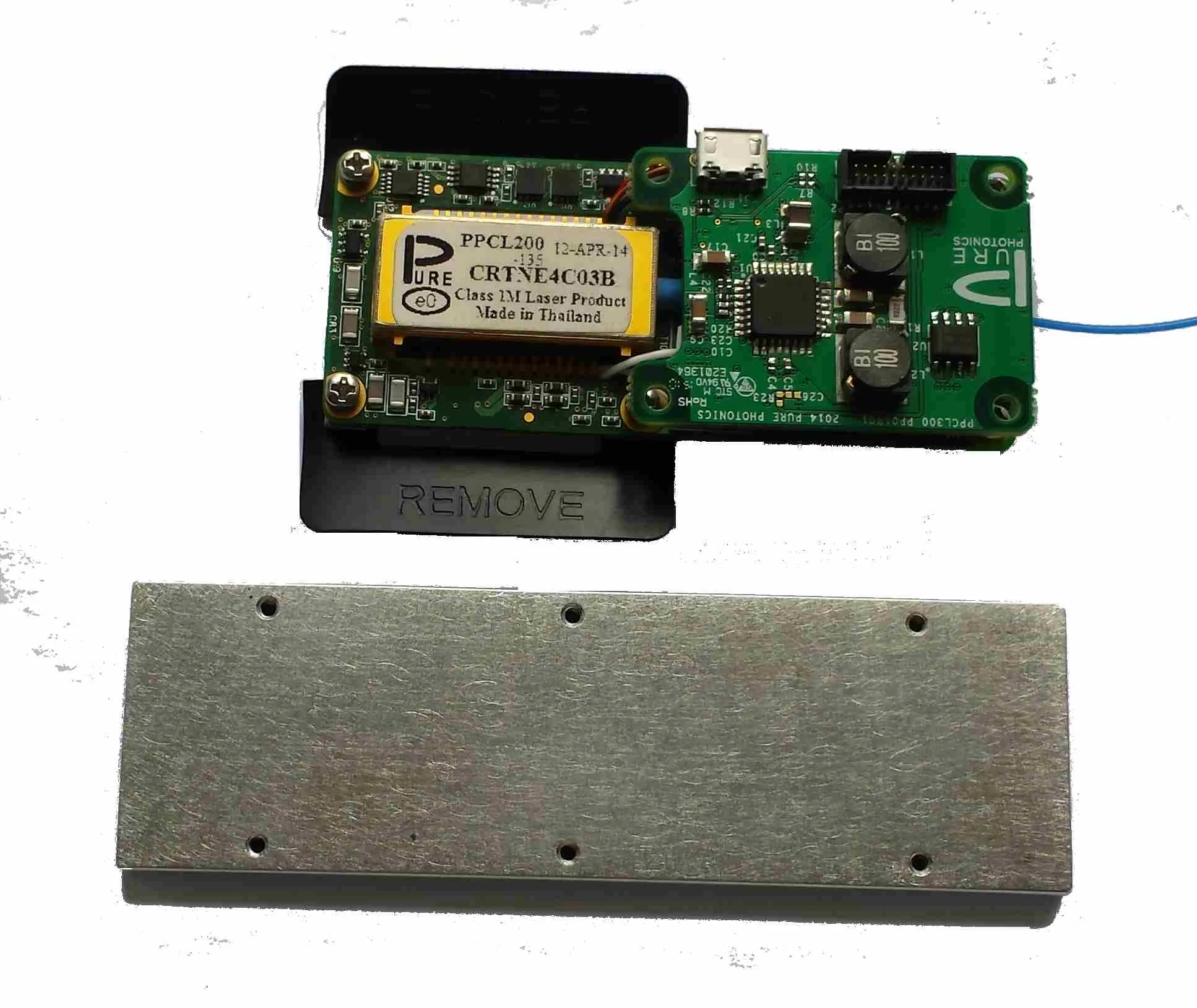

PPEB250 Mechanical Interface

Machined Aluminum plate with mounting holes for the ITLA. Provides sufficient heatsinking, when placed in direct air-flow or when mounted on a larger metal heatsink. Combine this with PPEB400, as an alternative to a full evaluation board solution.

Price: $60
